Dedo Posted October 23, 2018 Share Posted October 23, 2018 Potrzebuje schemat elektryczny dokladnie oznaczenia przy kostce wchodzacej w zegary?? Prosze o pomoc. Quote Link to comment Share on other sites More sharing options...
_Monter_ Posted October 23, 2018 Share Posted October 23, 2018 https://pl.scribd.com/document/126984775/NT700V-Wiring-DiagramsTransalp ma taką samą instalację chyba Quote lewa noga: http://forum.motocyk...__1#entry782383 prawa noga: http://forum.motocyk...__fromsearch__1...i tak wszyscy umrzemy... Link to comment Share on other sites More sharing options...
Natalia Cattiva Posted October 23, 2018 Share Posted October 23, 2018 Chyba tak, TU na koncu tez cos jest.http://transalpclub.pl/danetcp/instrukcje/XL700V_service_manual-EN.pdf Quote Non è forte chi non cade mai, ma chi cade e si rialza Link to comment Share on other sites More sharing options...
Dedo Posted October 23, 2018 Author Share Posted October 23, 2018 Potrzebuje schemat elektryczny dokladnie oznaczenia przy kostce wchodzacej w zegary?? Prosze o pomoc. W kolorku byl kiedys schemat ladny z widocznym opisem j taki potrzebuje zeby oznaczenia byly widoczne kazdego przewodu i od czego jest. Quote Link to comment Share on other sites More sharing options...

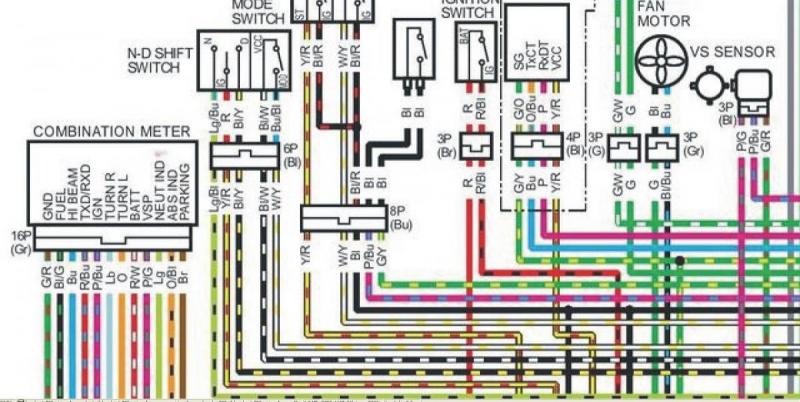

wiciu_r Posted October 23, 2018 Share Posted October 23, 2018 https://www.google.pl/search?client=opera&hs=Mbf&biw=1536&bih=781&tbm=isch&sa=1&ei=0CrPW6qIGsmnsgG5v5O4Bg&q=honda+nt+700+schemat&oq=honda+nt+700+schemat&gs_l=img.3...3127.5089.0.5429.8.8.0.0.0.0.165.945.1j7.8.0....0...1c.1.64.img..0.2.233...0i19k1j0i30i19k1j0i8i30i19k1j0i8i30k1j0i24k1.0.q-94NWL3aBc#imgrc=hmCaMAJyQoFdoM: Obraz prawym myszy i zapisz, a potem otwórz grafiką. Quote Link to comment Share on other sites More sharing options...
Dedo Posted October 23, 2018 Author Share Posted October 23, 2018 No ten sciagalem ale jakosc jego jest slaby i nie widac po sciagnieciu ktory przewod jest do jakiej kontrolki jest ich od 16 -17. Potrzebuje wlasnie ten schemat. To jest schemat od nc 700 a nie do nt 700!!! Chodzi mi o nt 700 deauville!!! Quote Link to comment Share on other sites More sharing options...
wiciu_r Posted October 23, 2018 Share Posted October 23, 2018 (edited) no patrz, a obok schematu właśnie pisze nt700 po powiększeniu źle nie wygląda Edited October 23, 2018 by wiciu_r Quote Link to comment Share on other sites More sharing options...
Limo Posted October 23, 2018 Share Posted October 23, 2018 Jaki wybredny :D. Chłopie Ty się ciesz że ktokolwiek odpisuje i po rękach całuj! Quote Why... So... Serious Link to comment Share on other sites More sharing options...
_Monter_ Posted October 23, 2018 Share Posted October 23, 2018 Jaki wybredny :D. Chłopie Ty się ciesz że ktokolwiek odpisuje i po rękach całuj! :lalag: Quote lewa noga: http://forum.motocyk...__1#entry782383 prawa noga: http://forum.motocyk...__fromsearch__1...i tak wszyscy umrzemy... Link to comment Share on other sites More sharing options...
Natalia Cattiva Posted October 23, 2018 Share Posted October 23, 2018 Jaki wybredny :D. Chłopie Ty się ciesz że ktokolwiek odpisuje i po rękach całuj!Limo spokojnie, bo nastepny poprosi o wydruk z dowozem do domu, bo akurat w garazu siedzi.. Quote Non è forte chi non cade mai, ma chi cade e si rialza Link to comment Share on other sites More sharing options...
_Monter_ Posted October 23, 2018 Share Posted October 23, 2018 Limo spokojnie, bo nastepny poprosi o wydruk z dowozem do domu, bo akurat w garazu siedzi..Kilku już takich było na forum...w tym klimacie. Quote lewa noga: http://forum.motocyk...__1#entry782383 prawa noga: http://forum.motocyk...__fromsearch__1...i tak wszyscy umrzemy... Link to comment Share on other sites More sharing options...
Dedo Posted October 23, 2018 Author Share Posted October 23, 2018 Napisalem szukam pomocy a nie mondrali jesli ktos by mial to bym poprosil. A tu nagle dyskusja zeby dziekowac za cos niepotrzebnego. Dziekuje. Quote Link to comment Share on other sites More sharing options...
wiciu_r Posted October 23, 2018 Share Posted October 23, 2018 Aż mi słoma z butów wypadła..... :biggrin:Dobrze że mam browca to jakoś przeżyję.... Quote Link to comment Share on other sites More sharing options...
Natalia Cattiva Posted October 23, 2018 Share Posted October 23, 2018 Aż mi słoma z butów wypadła..... :biggrin:Dobrze że mam browca to jakoś przeżyję....Widzisz mondralo co narobiles? :DWstydz sie. Monter to samo - pierwszy sie wychylil. Mondrala. Quote Non è forte chi non cade mai, ma chi cade e si rialza Link to comment Share on other sites More sharing options...
Limo Posted October 23, 2018 Share Posted October 23, 2018 Limo spokojnie, bo nastepny poprosi o wydruk z dowozem do domu, bo akurat w garazu siedzi.. Może bym i dowiózł, w przypływie dobrego serca, w końcu na Bemowo daleko nie mam, ale kurcze skończył mi się kolorowy tusz w drukarce :( Quote Why... So... Serious Link to comment Share on other sites More sharing options...
